Somai Meeting Room Sensor

Free up ineffective meeting time and room space with intelligent infrared + acoustic sensor technology

Through smart sensor technology and company system specifications, different strategies are set to recover invalid meeting time resources and notify subscribers in a timely manner. Adopt Somai remote IOT collection device combined with infrared acoustic detection technology for automatic data collection and system ruling of meeting room personnel.

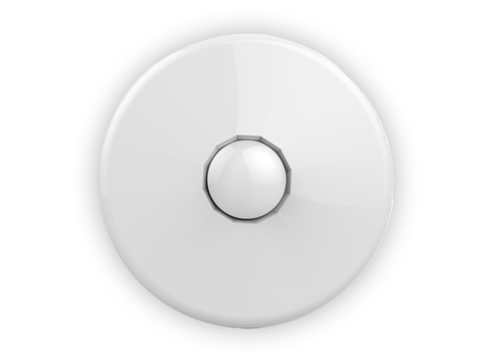

SMLH-913C infrared + microwave detector

Sensor type dual element + microwave sensor, Doppler effect + energy analysis, microwave antenna type planar type, anti-EMI, RFI interference resistance Anti-tampering function Anti-white light level 10000Lux

设备配置信息

Operating voltage: DC9-24V：

Current consumption: ≤30mA (DC12V)：

Installation: Ceiling ：

Installation height: 3.6m：

Detection range: 8m/360° ：

Microwave frequency: 10.525G ：

Alarm output: Normally closed, normally open optional ：

Tamper switch: Normally closed ：

Size (mm): φ135*38：

M-Sensor 801 无线LoRa工位传感器

功能特色

M-Sensor 801是自组网LoRa无线红外传感器，支持LoRa私有协议，传输安全可靠；
搭配LoRa网关使用，传输距离可达500米，低功耗、多节点传输；
-138.5dBm，接收灵敏度高，抗干扰性强；多模式应用领域广，时分复用干扰小；
MQTT/Socket云传输协议自由选择。

参数配置

MQTT/Socket云传输协议自由选择。
工作电源：2节电池，1500毫安
电池工作时间：2年
安装高度：3.6米
探测范围：12平方米，角度360度
尺寸：100mm*100mm*15mm
安装方式：吸顶/墙壁侧面
探测信号：有人/无人
LoRa传输距离：办公室环境200米，空旷环境2500米

Learn how HUAWEI optimises its spaces with Somai meeting room bookings

"The integration of Somai face recognition terminal products and Huawei Welink cloud platform fully realises the new experience of office one-face pass, making it more convenient for employees to brush their faces and safer for visitors to pass."

- "The integration of Somai face recognition terminal products and Huawei Welink cloud platform fully realises the new experience of office one-face pass, making it more convenient for employees to brush their faces and safer for visitors to pass."

Learn more about Somai and HUAWEI
