Easy to access control
In some corporate office scenarios, where a screen device is not required, but meeting rooms need to be signed in and access controlled at the same time, this scenario can be achieved directly using the Somai SMQR8001 2D/IC card reader

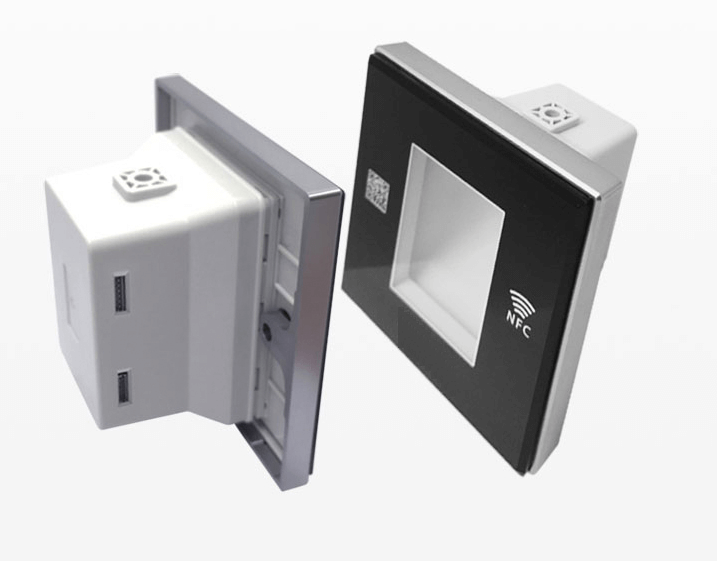

The SMQR-8001 is an access control QR code reader that can be used with meeting booking systems to open doors and sign in and out of meetings, supporting IC card reading, QR code reading, NFC mobile phone card reading and sign in. This product is compatible with the traditional switch or socket 86 box base and can be installed directly on the 86 box base with the front flat.
Device Configuration Information
Setup size: Compatible with 86 box base mounting, size 86mm*86mm*42mm
Scanning distance: 12cm
Scanning angle: 360°
Card reading type: ID card, NFC mobile phone, contact IC card, M1 induction card, etc.
Reading speed: 100ms
Communication mode: RS485, RS232, TTL, Wegen, GPIO
Operating environment: -20°~50
Voltage input 5V: Operating current MAX 390mA
Learn how HUAWEI optimises its spaces with Somai meeting room bookings
